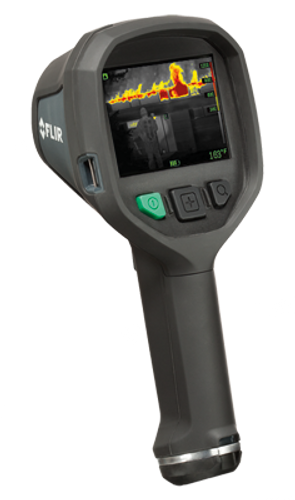

FLIR K2™ TIC with MSX®

Contact us for Pricing Quote (800)473-8903

( 0 Reviews )



FLIR K2 FEATURES


Extremely Affordable

The K2 makes powerful thermal imaging more accessible so more first responders can help save more lives, more property, and stay safer

Multiple image modes

Set the K2 to one of seven different thermal imaging modes depending on the primary use of the camera; switch between them using FLIR Tools software

Bright Screen

3” LCD clearly displays luminous 160 × 120 thermal images to help you maneuver more confidently and strategically under the harshest conditions

Rugged & Reliable

Engineered to survive tough operating conditions, the K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to +500° (for 3 minutes)

Rechargeable Batteries

Quick-release battery is easy to remove, change, and recharge

2-5-10 Warranty

2 years on batteries, 5 on the camera, and 10 on the detector



FLIR K2 SPECIFICATIONS


Imaging and Optical Data
IR resolution 160 × 120 pixels
Thermal sensitivity/NETD < 100 mK @ +30°C (+86°F)
Field of view (FOV) / focus 47° × 35°
Image frequency 9 Hz
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.5–13 µm
Start-up time < 30 sec. (IR-image, no GUI)
Start-up time from sleep mode < 10 sec.
F-number 1,1


Visual camera

Built-in digital camera 640 × 480 pixels
Digital camera, FOV 73° × 61°, adapts to the IR lens
Sensitivity Minimum 10 lux
Image presentation
Display 3 in. LCD, 320 × 240 pixels, backlit
Image modes – switchable using FLIR Tools software TI Basic fire-fighting mode (default)
Black-and-white fire-fighting mode
Fire mode
Search-and-rescue mode
Heat detection mode
Cold detection mode
Building analysis mode
Auto-range Auto, non-selectable
Measurement
Object temperature range –20°C to +150°C (–4°F to +302°F)
0°C to +500°C (+32°F to +932°F)
Accuracy ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (+50°F to 95°F)
Measurement analysis
Spotmeter 1
Isotherm Yes
Automatic heat detection Heat detection mode (the hottest 20% of the scene is colorized)
Data communication interfaces
Interfaces Update from PC and Mac devices
USB USB Micro-B
Power system
Battery Li Ion, 4 hours operating time
Charging system Outboard single bay charger included + in-camera charging via USB
Charging time 2.5 h to 90% capacity, charging status indicated by LEDs
Charging temperature 0 °C to +45 °C / 32 °F to 113 °F
Environmental data
Designed to meet NFPA 1801 specification Vibration, impact acceleration resistance, corrosion,
viewing surface abrasion, heat resistance, heat and flame,
product label durability
Operating temperature range –20°C to +55°C (–4°F to +131°F)
+85°C (+185°F): 15 minutes
+150°C (+302°F): 10 minutes
+260°C (+500°F): 3 minutes
Storage temperature range –40°C to +70°C (–40°F to +158°F)
Encapsulation IP 67 (IEC 60529)
Drop 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
Physical data
Camera weight, incl. battery 0.7 kg (1.54 lb.)
Camera size (L × W × H) 250 × 105 × 90 mm (9.8 × 4.1 × 3.5 in.)
Tripod mounting UNC ¼”-20
Packaging
Packaging, contents Infrared camera, battery (2 ea.), battery charger, lanyard strap, power supply, printed documentation, USB cable, user documentation CD-ROM





*Disclaimer: Specifications are subject to change without notice. Availability of camera models and accessories subject to regional market considerations. Prices listed are US only, please consult your specific country for current pricing.







WHAT'S IN THE BOX

- Infrared camera
- Battery (×2)
- Battery Charger
- Lanyard Strap
- Power Supply
- Printed Documentation
- USB cable
